Pudu · Delivery robot for restaurants and retail
Pudu BellaBot
- Pre-owned
A cat-faced delivery robot that carries four trays to the table and charms guests on the way.
- Trays
- 4
- Max load, 10 kg per tray
- 40 kg
- Battery life, no load
- 13 h
- Speed, adjustable
- 0.5–1.2 m/s
Navigation

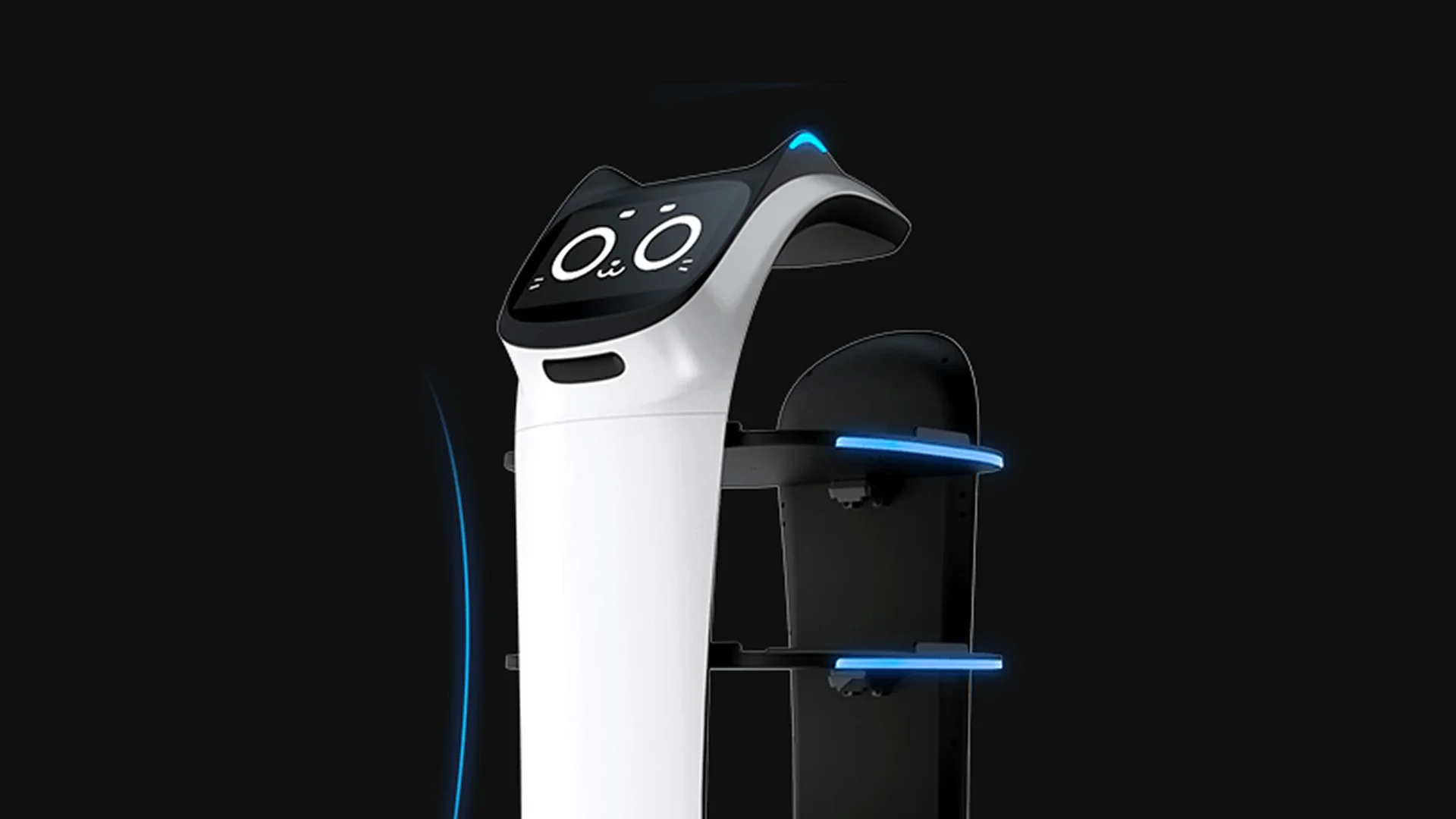

Finds its own way.
BellaBot navigates by laser (LiDAR) or by camera (visual SLAM), so it suits more kinds of venue. Laser positioning needs no markers and works under any ceiling height; marker positioning works with ceilings up to 8 m.
Safety

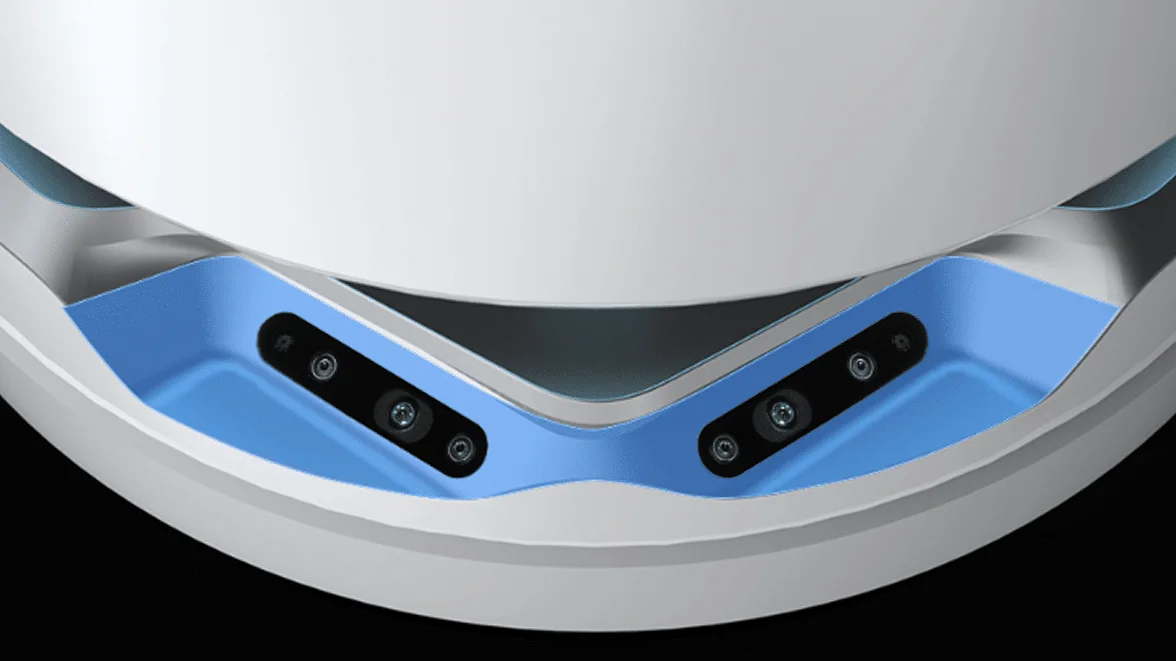

Sees obstacles in 3D.
Three RGBD depth cameras work with the LiDAR to spot obstacles from any angle, including low ones and ones that hang over its path. It stops in as little as 0.5 seconds, then moves on around them.
Guests

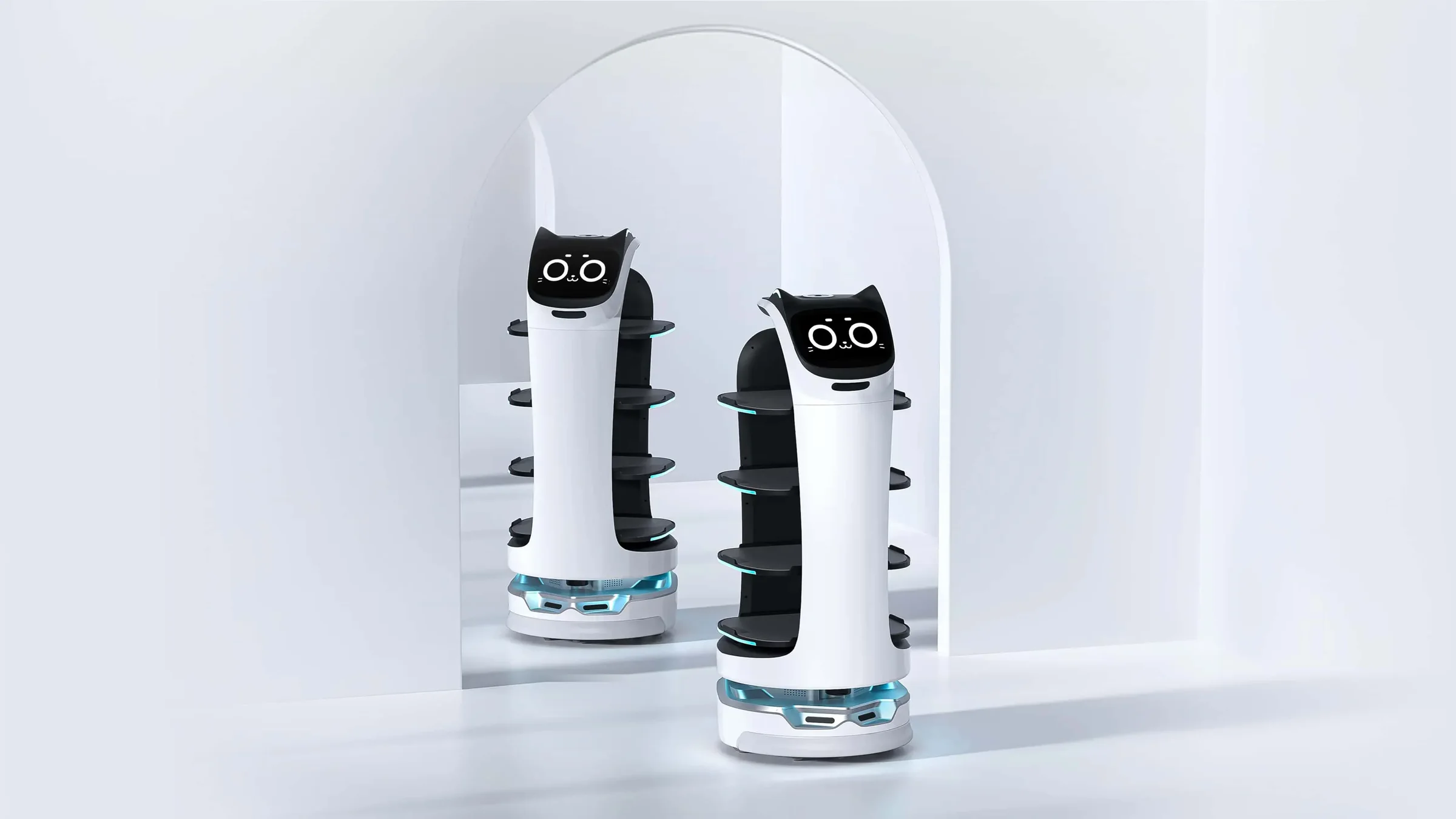

A cat people come back to see.
Dozens of original cat expressions on its face, voice greetings, lights that show what it is doing, and a response when it is touched. BellaBot is built to bring guests a little delight with every delivery.
Trays

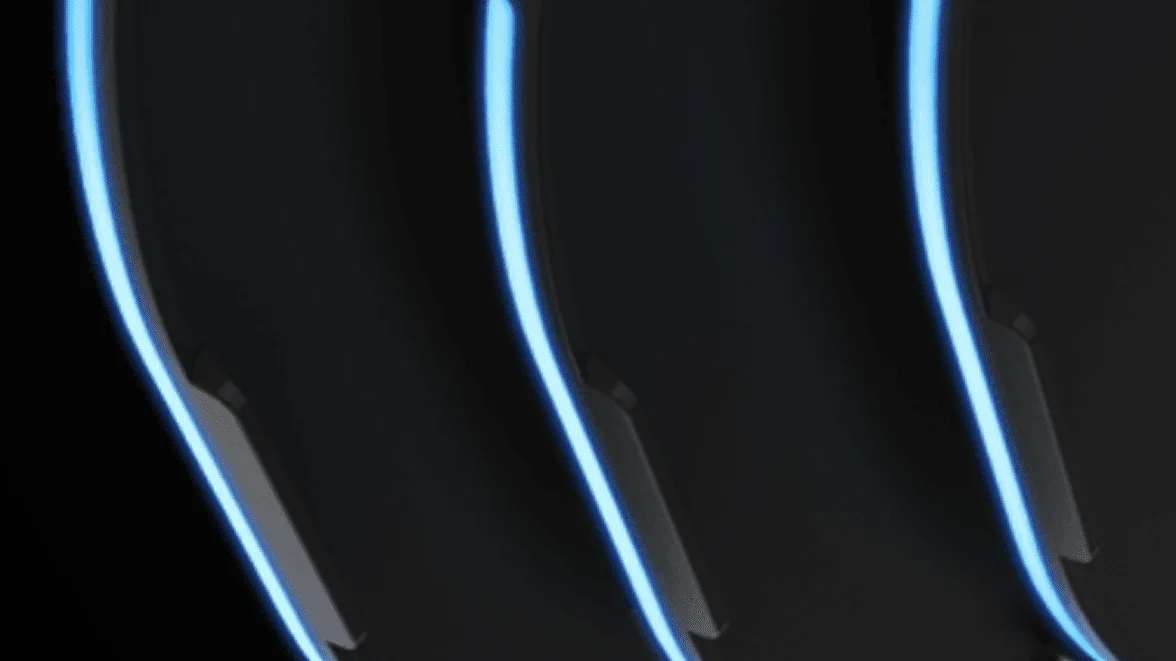

Four trays, 40 kg a trip.
Each 41 × 50 cm tray holds up to 10 kg. An infrared sensor watches the trays, and the trays come off quickly for cleaning.
Ride

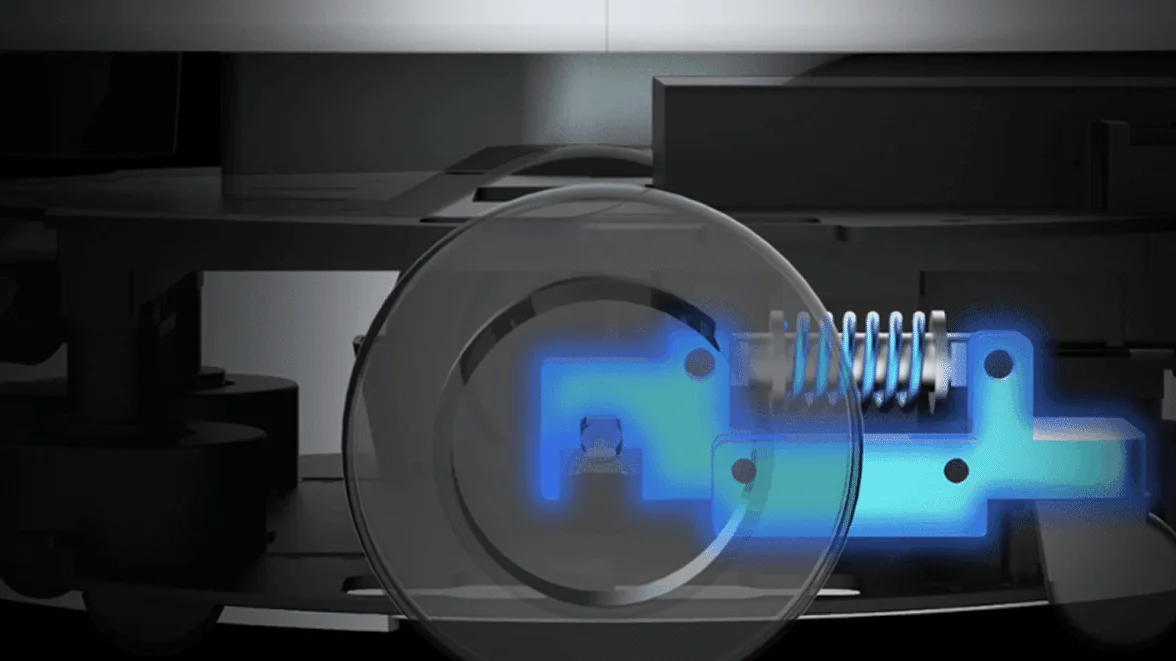

Soup stays in the bowl.
Automotive-grade independent suspension adjusts its damping to the floor, keeping the trays steady on the way to the table. It handles slopes of up to 5°.
Battery

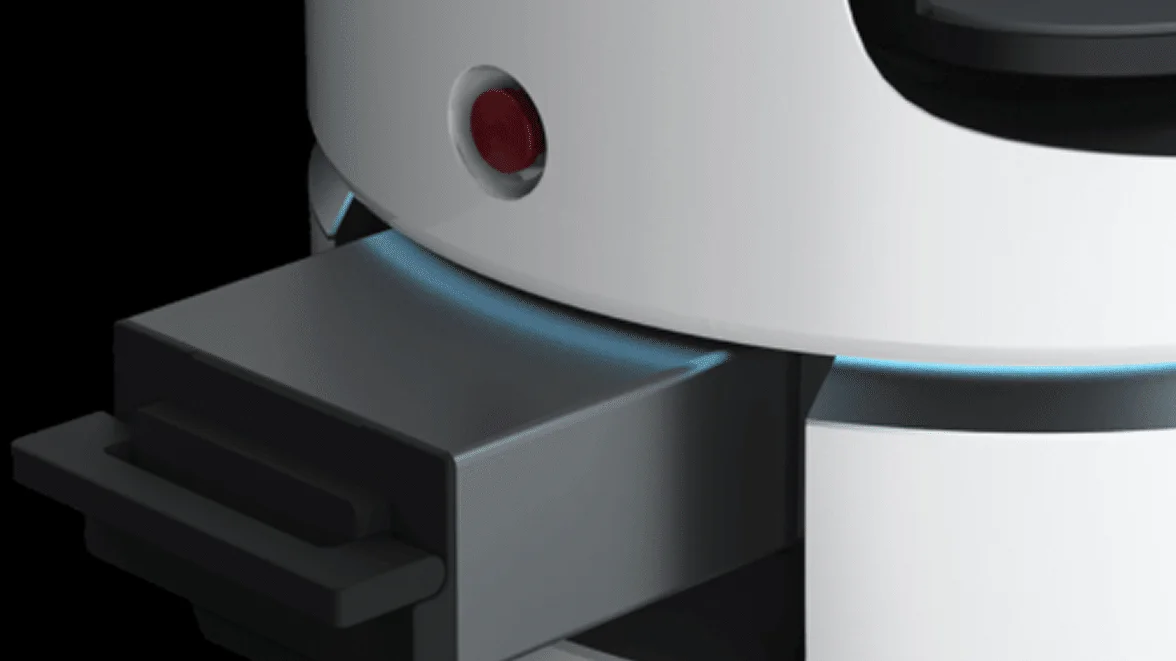

Swap the battery, keep serving.
Up to 13 hours on a charge without a load, and 4.5 hours to recharge. The battery swaps out quickly, so BellaBot can keep working through long days.
Call it from anywhere.
Staff can call and manage BellaBot from the PUDU Link app, a push-button caller or a 4G watch. The app also shows each robot's status and operating data. Calling devices are optional: ask us what is included.
Specifications
Trays and load
- Condition
- Pre-owned
- Trays
- 4
- Max load
- 40 kg, 10 kg per tray
- Tray size
- 41 × 50 cm
- Tray heights, top to bottom
- 23 / 20 / 20 / 18 cm
- Tray sensor
- Infrared
Battery
- Battery life
- 13 h, no load
- Charging time
- 4.5 h
- Battery swap
- Yes, quick swap
Movement
- Speed
- 0.5–1.2 m/s, adjustable
- Climbing angle
- Up to 5°
- Suspension
- Automotive-grade independent suspension
Navigation and sensors
- Navigation
- LiDAR SLAM and visual SLAM
- Positioning
- Laser: no markers, any ceiling height. Markers: ceilings up to 8 m
- Obstacle sensing
- 3 RGBD cameras + LiDAR
- Stopping response
- As short as 0.5 s
Interaction and calling
- Interaction
- Cat expressions, voice, status lights, touch response
- Calling
- PUDU Link app, push-button caller, 4G watch (optional)
Size and weight
- Dimensions (L × W × H)
- 565 × 537 × 1,290 mm
- Weight
- 55 kg
- Materials
- ABS and aircraft-grade aluminium alloy
Frequently Asked Questions
No. BellaBot can position itself by laser without markers. Markers are an alternative for venues with ceilings up to 8 m. We will advise which suits your venue.
